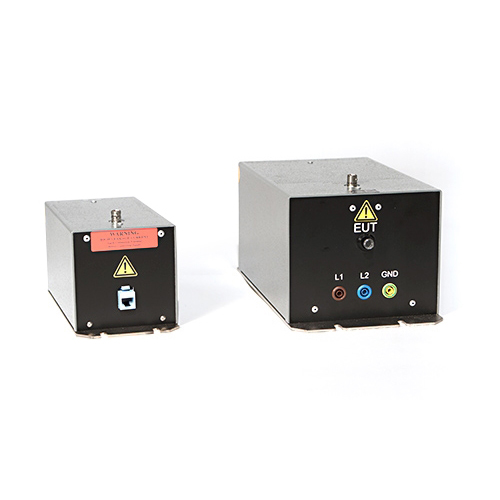

共模电流干扰信号可以通过各种耦合网络传输到EUT，将信号注入到未屏蔽电缆、屏蔽电缆、平衡电缆、同轴电缆和电源上。解耦网络用于确保干扰信号不会影响辅助设备，并放置在EUT和辅助设备之间。
产品目录

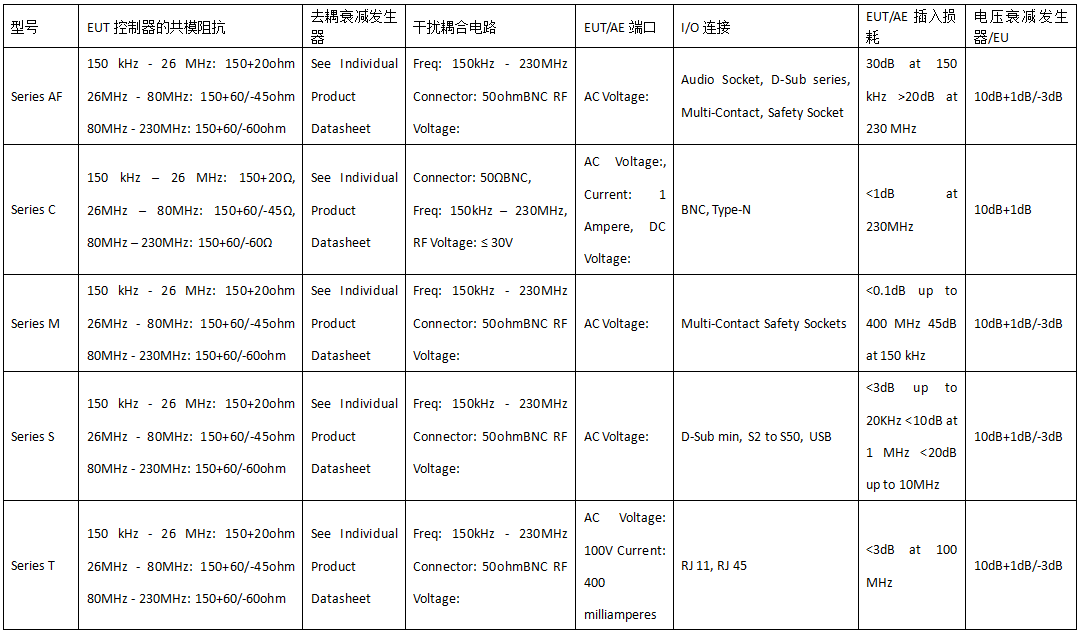

型号 | EUT控制器的共模阻抗 | 去耦衰减发生器 | 干扰耦合电路 | EUT/AE端口 | I/O连接 | EUT/AE插入损耗 | 电压衰减发生器/EU |
Series AF | 150 kHz - 26 MHz: 150+20ohm 26MHz - 80MHz: 150+60/-45ohm 80MHz - 230MHz: 150+60/-60ohm | See Individual Product Datasheet | Freq: 150kHz - 230MHz Connector: 50ohmBNC RF Voltage: | AC Voltage: | Audio Socket, D-Sub series, Multi-Contact, Safety Socket | 30dB at 150 kHz >20dB at 230 MHz | 10dB+1dB/-3dB |
Series C | 150 kHz – 26 MHz: 150+20Ω, 26MHz – 80MHz: 150+60/-45Ω, 80MHz – 230MHz: 150+60/-60Ω | See Individual Product Datasheet | Connector: 50ΩBNC, Freq: 150kHz – 230MHz, RF Voltage: ≤ 30V | AC Voltage:, Current: 1 Ampere, DC Voltage: | BNC, Type-N | <1dB at 230MHz | 10dB+1dB |
Series M | 150 kHz - 26 MHz: 150+20ohm 26MHz - 80MHz: 150+60/-45ohm 80MHz - 230MHz: 150+60/-60ohm | See Individual Product Datasheet | Freq: 150kHz - 230MHz Connector: 50ohmBNC RF Voltage: | AC Voltage: | Multi-Contact Safety Sockets | <0.1dB up to 400 MHz 45dB at 150 kHz | 10dB+1dB/-3dB |
Series S | 150 kHz - 26 MHz: 150+20ohm 26MHz - 80MHz: 150+60/-45ohm 80MHz - 230MHz: 150+60/-60ohm | See Individual Product Datasheet | Freq: 150kHz - 230MHz Connector: 50ohmBNC RF Voltage: | AC Voltage: | D-Sub min, S2 to S50, USB | <3dB up to 20KHz <10dB at 1 MHz <20dB up to 10MHz | 10dB+1dB/-3dB |
Series T | 150 kHz - 26 MHz: 150+20ohm 26MHz - 80MHz: 150+60/-45ohm 80MHz - 230MHz: 150+60/-60ohm | See Individual Product Datasheet | Freq: 150kHz - 230MHz Connector: 50ohmBNC RF Voltage: | AC Voltage: 100V Current: 400 milliamperes | RJ 11, RJ 45 | <3dB at 100 MHz | 10dB+1dB/-3dB |
